Description

Complete monitoring systemfor the automatic, continuous measurement of the specific (total) conductivity.

• Complete system with dedicated transmitter, high precision conductivity sensor and flow cell with needle valve and digital sample flow meter.
• Quick sensor release with patented slot-lock design.
• Factory tested and ready for use.

Specifications

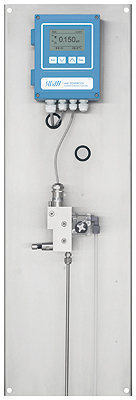

Transmitter AMI Powercon with conductivity sensor UP-Con1000-SL and flow cell QV-Flow UP-CON-SL mounted on a stainless steel panel, ready for installation and operation.

Transmitter with two signal outputs for measured values or continuous control, two relays as limit switches or as controllers, alarm relay as summary alarm indication, input for potential free contact.

The flow cell is equipped with a manual flow adjustment valve and a digital sample flow meter.

• Measuring range: 0.055 to 1000 μS/cm
• Sample conditions:
  - Temperature: up to 50 °C
  - Inlet pressure: up to 2 bar
  - Outlet pressure: pressure-free (atmospheric drain)
• Sample connections:
  - Inlet: Swagelok ¼” tube adapter
  - Outlet: 1/8” adapter for flexible tube Ø 8mm

For further information see data sheet.
