Description

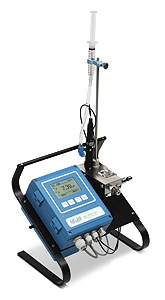

The portable AMI INSPECTOR is a complete monitoring system mounted on a small panel with supporting stand and a rechargeable battery for stand-alone operation, designed as an inspection equipment for quality assurance of online, pH process monitors.



• Measurement range:  1 to 12 pH
• Rechargeable battery for stand-alone operation for at least 24 hours.

Specifications

Complete portable system mounted on small aluminium panel with supporting stand and rechargeable battery.

• Transmitter in aluminum housing (IP 66) with 2 relays as limit switch or controller or timer, 1 alarm relay as summary alarm contact, 1 input for potential-free contact. Including USB Interface with 1 signal output for measuring value or for continuous control.
• Flow cell QV-Flow IS1000 made of stainless steel SS316L with built-in temperature sensor (Pt1000), flow adjustment valve, digital sample flow meter, quick release vessel for easy sensor access and calibration.
• Swansensor pH SI, combined electrode with liquid electrolyte.
• Rechargeable battery for stand-alone operation of at least 24 hours.



Measuring range:	1.00 to 12.00 pH
Resolution:	0.01 pH
Power supply:	85 - 265 VAC; 50/60Hz
Stand-alone operating time:	> 24 hours
Sample flow rate:	5 to 10 l/h
Sample temperature:	up to 50°C
Process connection Inlet:	Swagelok ¼" tube adapter
Process connection Outlet:	Ø 16 mm, tubing 15 x 20 mm
Total weight:	4.5 kg

For further information see data sheet.
